Hydraulic Solenoid Coil

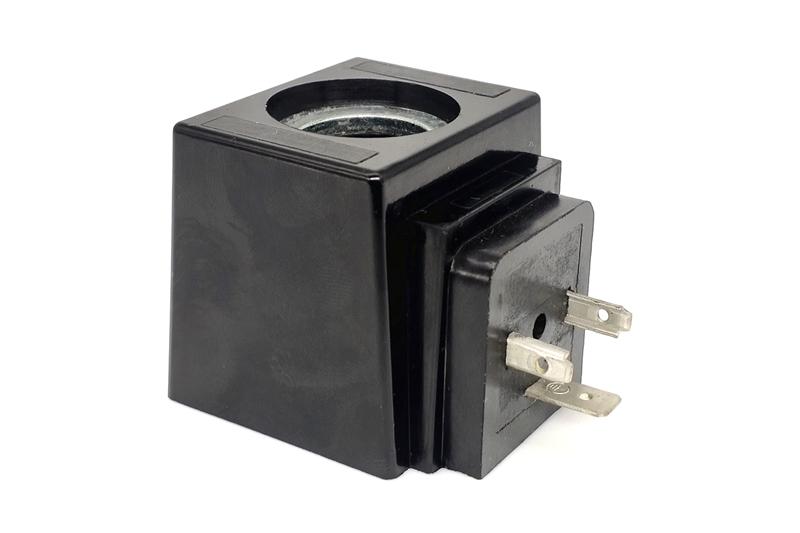

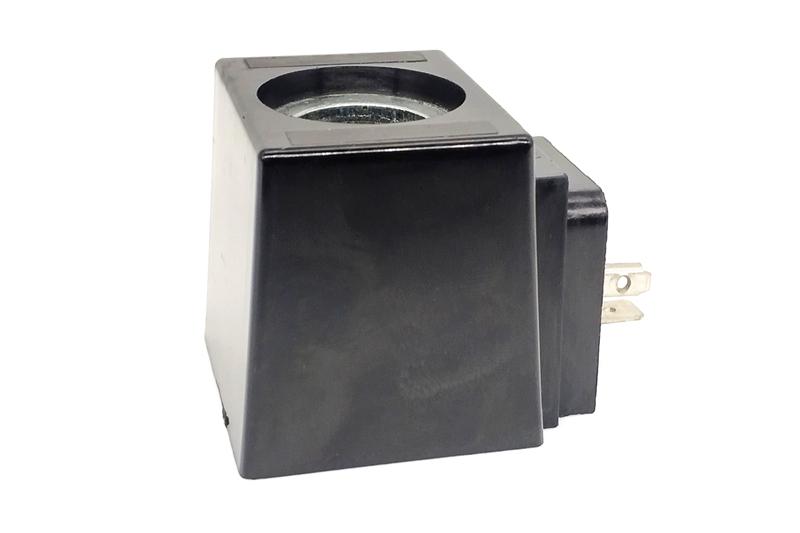

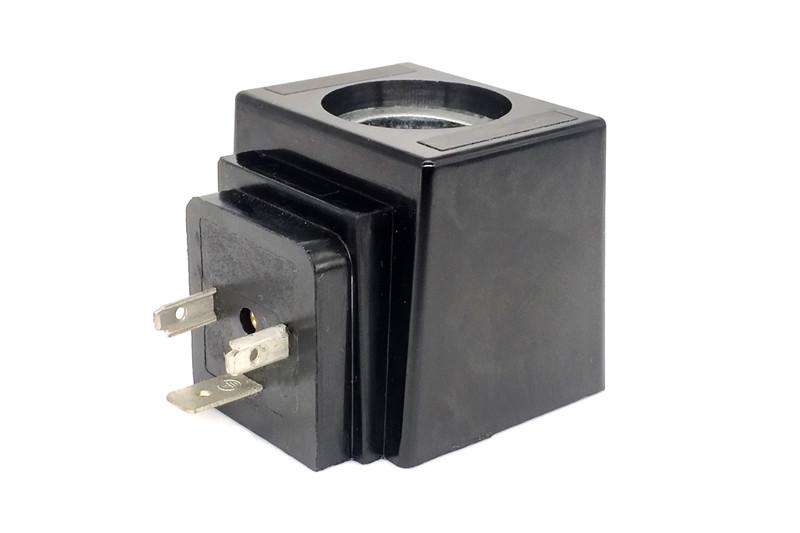

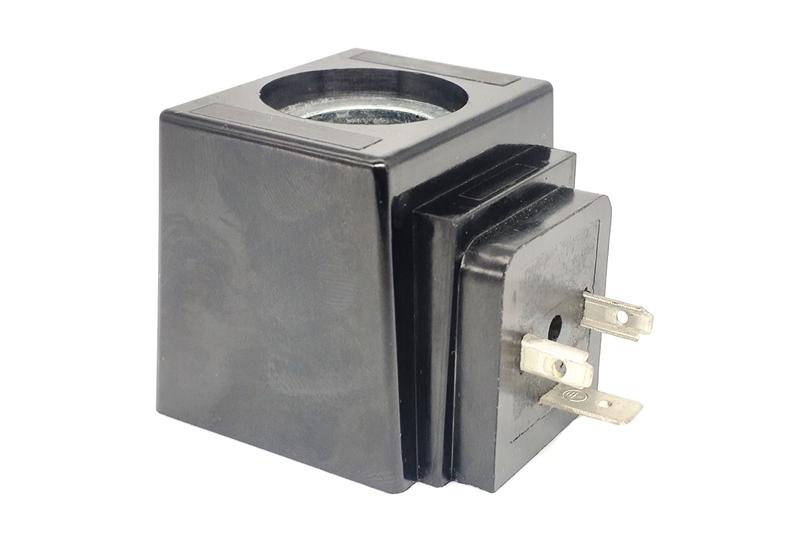

693715 Hydraulic Solenoid Coil for Parker Valves
693715 Hydraulic Solenoid Coil for Parker Valves
693715 Hydraulic Solenoid Coil for Parker Valves
693715 Hydraulic Solenoid Coil for Parker Valves
693715 Hydraulic Solenoid Coil for Parker Valves

693715 Hydraulic Solenoid Coil for Parker Valves

Boring size 19.2mm, 43mm height. Parker or Vickers type
Free Samples, Factory price
Features
  • Powerful magnet force
  • Service up to 180℃ with class H wire, according to IEC317-8
  • Multiple types of voltage and power for selection, AC, DC or RAC
  • Protection degree IP 65, IP67 or others on request
  • Customized solution is available

Description

Reviews

The 693715 hydraulic solenoid coil suitable for many cartridge valves brand, like Parker.

These coils can be made with different powers or characteristics upon customer request. Beris Electronic focuses on the manufacturing and customized development of solenoid valve coils, we provide customers in the hydraulic field with high-quality coils, which can replace the original solenoid coils, both with very economy cost.

Specification of Beris 693715 Hydraulic Solenoid Coil

The 693715 hydraulic coil manufactured by Beris has various specifications and parameters to meet different application needs.

Boring size:

19.2mm, other sizes is available for custom.
Technical characteristic:
Standard Voltage 24VDC/110AC Protection degree IP65,IP67(EN60529)
Voltage range: ±10% Coil Insulation  Class  H
Rated Power  78VA or 31W Ambient temperature -20℃~+70℃
Duty Cycle: ED100% (continuous) Frequency 50/ 60 HZ(AC)
General Structure
Bobbie material Heat resistant thermoplastic polyester (PBT,PA66)
Coil wire Class H wire, up to 180℃ ( IEC317-8)
Magnetic yoke  Made by low carbon iron
Encapsulation material BMC (with specially designed,  thermoset material)
Electrical Connections
DIN43650


Any interest or further idea, welcome to contact Beris Team now.
We are ready to provide you the best suitable solution.
