Pneumatic Solenoid Coil

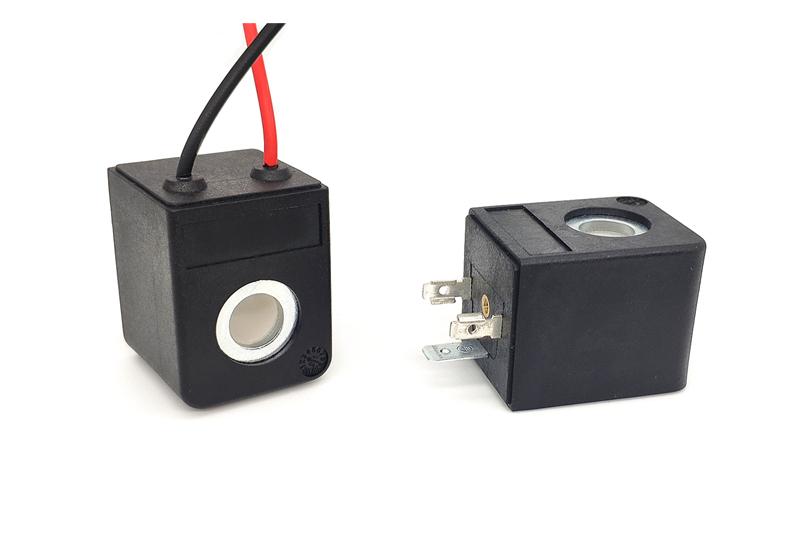

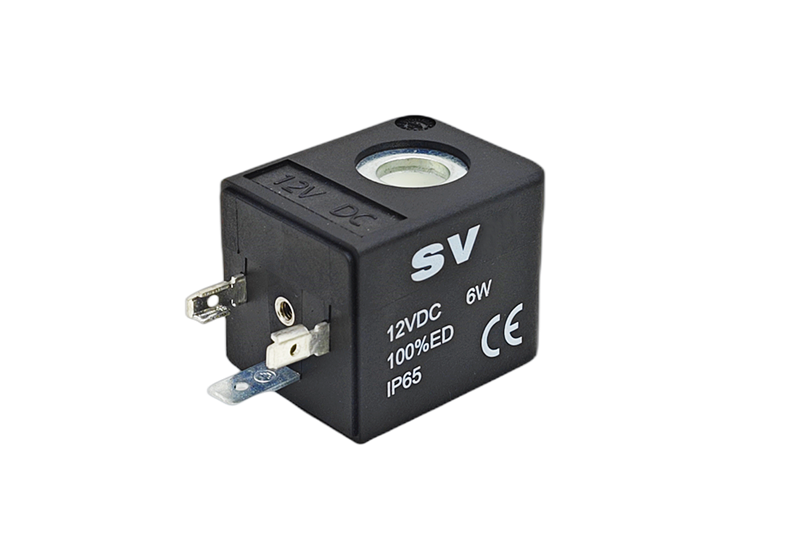

Amisco EVI30 Solenoid Coil
Amisco EVI30 Solenoid Coil
Amisco EVI30 Solenoid Coil
Amisco EVI30 Solenoid Coil
Amisco EVI30 Solenoid Coil

Amisco EVI30 Solenoid Coil

Diameter 8/9/10. DC/AC/RAC, DIN43650/Deutsch/AMP/Flying lead
Favorable Factory Price. Free Samples!
Features
  • Powerful electromagnet force
  • Service up to 180℃ with class H wire, according to IEC317-8
  • Built-in bridge rectifier for option
  • Multiple types of voltage and power for selection, AC, DC or RAC
  • Protection degree IP 65, others on request
  • Customized solution is available
Contact Now Contact Now
Promise
Menu
Products
Contact Now
Beris promise deliver powerful control coils for solenoid valves, at very favorable price!
To Get A Free Quote Now.
Name:
Email:  Email is wrong!
Message:  Message is wrong!
Submit

Description

Reviews

The AMISCO EVI30 coil system includes a wide range of solenoid coils suitable for pilot valves for pneumatic and fluid control applications.

The EVI30 coils are designed to fit most of the tube sizes applications
 ● The EVI 30/8 coil is designed to fit solenoid tubes with Ø=8mm.
 ● The EVI 30/9 coil is designed to fit solenoid tubes with Ø=9mm.
 ● The EVI 30/10 coil is designed to fit solenoid tubes with Ø=10mm.

These coils can be made with different powers or characteristics upon customer request. Beris Electronic focuses on the manufacturing and custom development of solenoid valve coils, we provide customers with high-quality coils, which can replace the original AMISCO coils, both with very economy cost.

Specifications of Amisco EVI30 coil made by Beris
The AMISCO EVI30 coil system manufactured by Beris has various specifications and parameters to meet different application needs.
Boring Size
8mm, 9mm, 10mm for option. Custom is available.

Technical characteristic:
Voltage:DC: 12V/24V; AC: 24V/110V/230V; RAC Protection degree: IP65 (EN60529)
Voltage range: DC±10%; AC -15%~+10% Coil Insulation: Class F/H
Rated Power:4.5/6W; others on request Ambient temperature: -20℃~+50℃
Duty Cycle: ED100% (continuous) Frequency: 50/ 60 HZ(AC)
General structure
Bobbie material Heat resistant thermoplastic polyester materials (PBT, PA66, PPS, PET)
Coil wireClass F (155℃ / Class H  - Service up to 200℃ (IEC317-8)
Magnetic yoke  Made by low carbon iron
Encapsulation material With specially designed, glass fiber filled PA66
Electrical Termination:

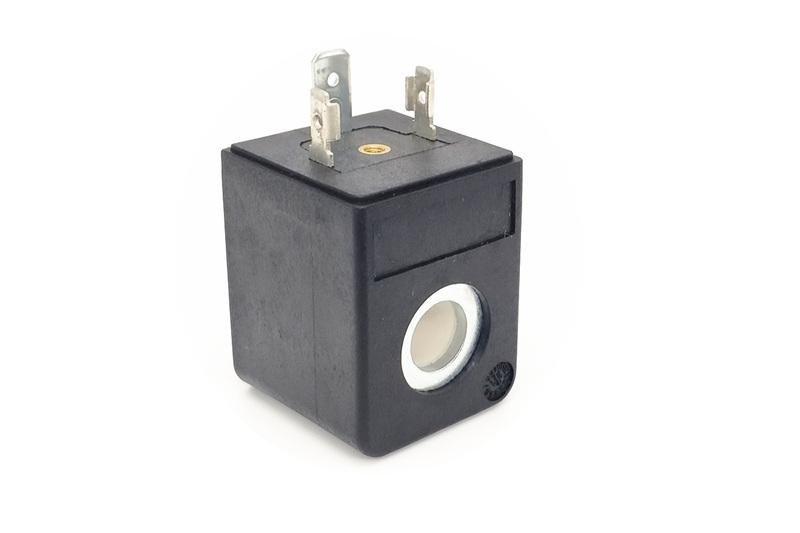

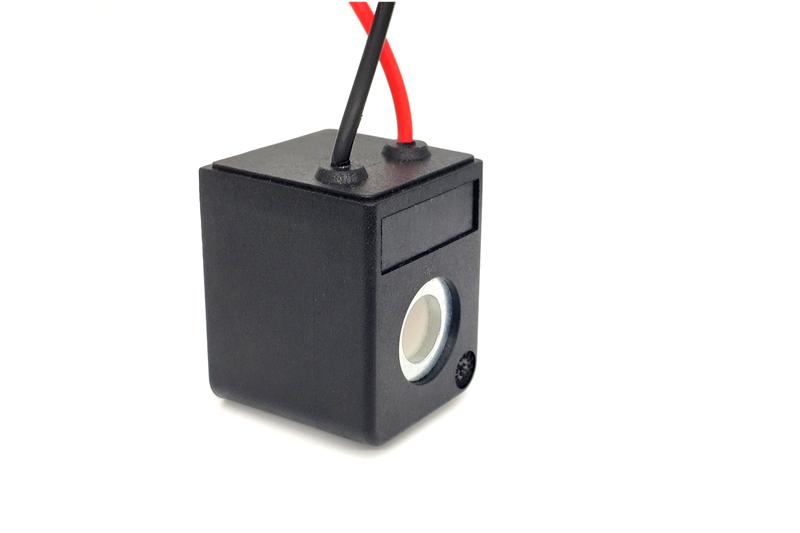

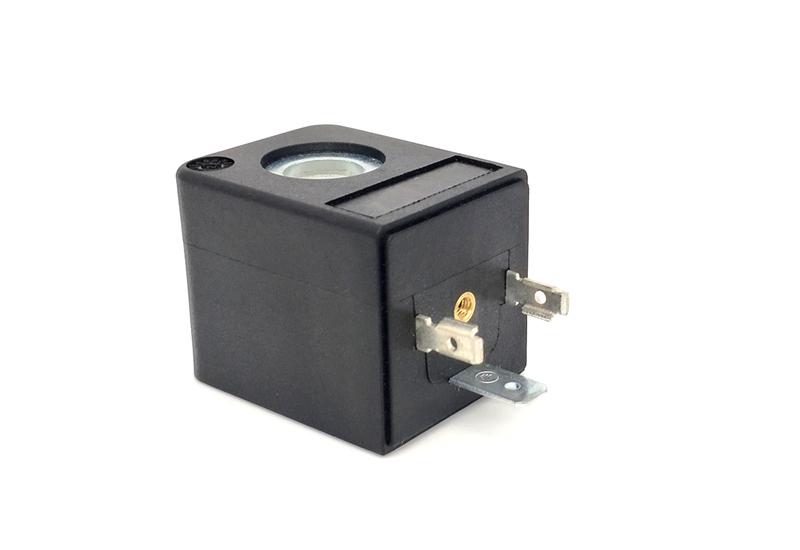

DIN43650, Flying Leads, Deutsch, AMP Junior.

Welcome to contact Beris Team, to ask a free quote or share your idea.
We are ready to provide you the best suitable solution at any time!
