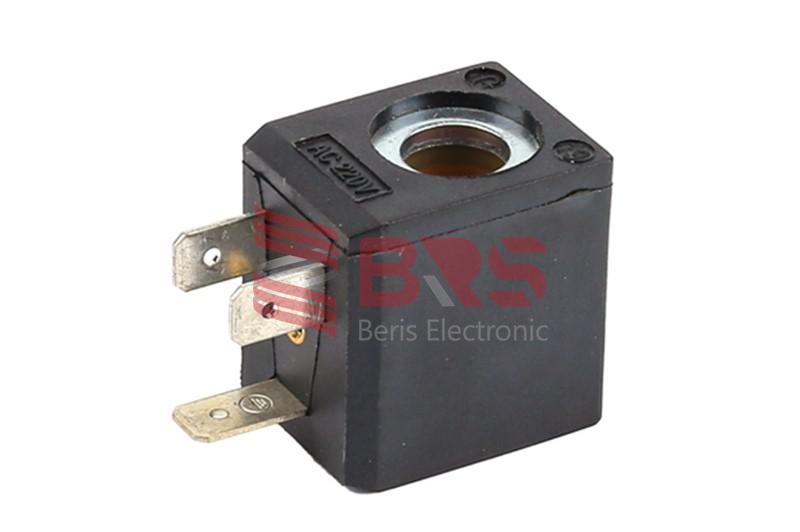

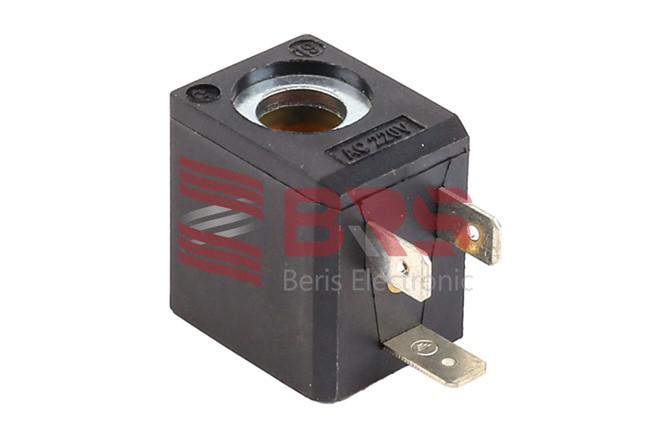

BRS-1030 Electric Solenoid Coil

Insulation Class H, Inner Diameter 10mm, Height 29.5mm, DIN43650B
Factory Competitive Price, ELEKTRISOLA Enamelled Copper Wire, One Year Quality warranty, Short delivery time, Sample free
Features
  • Powerful magnet force
  • Continuous duty  ED100%
  • Service up to 180℃ with  class H wire, according to IEC317-8
  • Protection degree IP 65, IP67 or others on request
  • Multiple types of voltage and power for selection, AC or DC
  • Customized solution is availale
Download Download       Contact Now Contact Now
Menu
Products
Contact Now
Beris promise deliver powerful control coils for solenoid valves, at very favorable price!
To Get A Free Quote Now.
Name:
Email:  Email is wrong!
Message:  Message is wrong!
Submit

Product details

Test

Reviews

Application
Suit for solenoid valve which widely used in small Household Appliances, Pneumatics, Steam industries.
Technical Data
Standard VoltageDC: 12V/24V; AC: 24V/110V/220V
Protection degreeIP65(EN60529)
Voltage rangeDC±10%, AC-10%~+15%
Coil Insulation  Class H
Rated Power AC: 5.5VA; DC: 4.8W; others on request
Ambient temperature-20℃~+50℃
Duty Cycle ED100% (continuous) Frequency 50/ 60 HZ
General Construction
Bobbie materialHeat resistant thermoplastic polyester materials (PBT, PA66, PPS, PET)
Coil wireClass F wire, service up to 155℃, Class H wire  - up to 200℃  ( IEC317-8)
Magnetic yoke  Made by low carbon iron
Encapsulation materialWith specially designed, PA66 30% fiberglass thermoplastic material
Electrical Connections
DIN43650B Spade plug
