Pneumatic Solenoid Coil

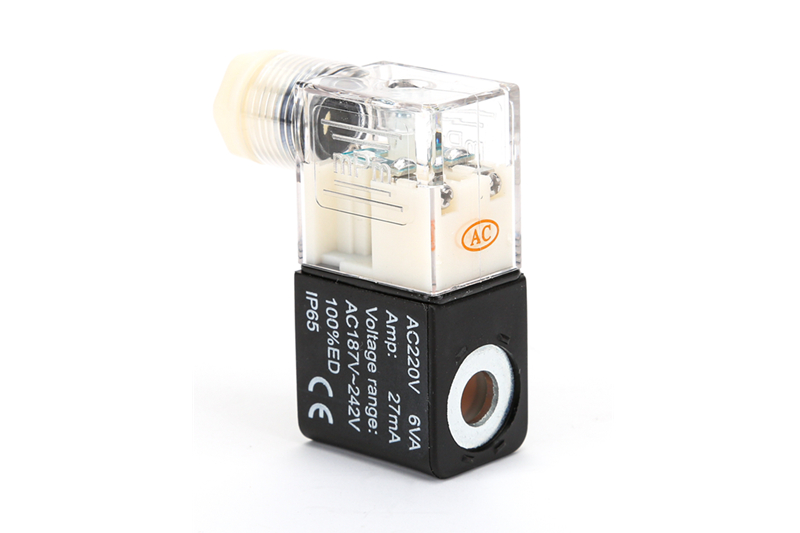

BRS-4V210 Pneumatic Solenoid Coil
BRS-4V210 Pneumatic Solenoid Coil
BRS-4V210 Pneumatic Solenoid Coil
BRS-4V210 Pneumatic Solenoid Coil

BRS-4V210 Pneumatic Solenoid Coil

Suitable for 5 Port Pneumatic valves, 22mm Width, Bobbin waterproof groove design
Sample free, 12 Months Warranty
Reference FOB Price: US$0.7-0.9
Features
  • Powerful magnet force
  • Continuous duty  ED100%
  • Service up to 180℃ with  class H wire, according to IEC317-8
  • Protection degree IP 65, IP67 or others on request
  • Multiple types of voltage and power for selection, AC or DC
  • Customized solution is availale
Download Download       Contact Now Contact Now
Menu
Products
Contact Now
Beris promise deliver powerful control coils for solenoid valves, at very favorable price!
To Get A Free Quote Now.
Name:
Email:  Email is wrong!
Message:  Message is wrong!
Submit

Product details

Reviews

Application
Suitable for AIRTAC Series Pneumatic solenoid valve, EVI 7 Type
Technical Data
Standard Voltage:DC: 12V/24V; AC: 24V/110V/220V
Protection degree: IP65 (EN60529)
Voltage range:DC±10%; AC -15%~10%
Coil Insulation:Class F, H
Rated Power:AC: 3.5VA/5.5VA/6VA; DC: 3W/4.8W/6W
Ambient temperature: -20℃~+50℃
Duty Cycle: ED100% (continuous) Frequency: 50/ 60 HZ
General Construction
Bobbie materialHeat resistant thermoplastic polyester materials (PBT, PA66, PPS, PET)
Coil wireClass F wire, service up to 155℃; class H wire, up to 200℃ ( IEC317-8)
Magnetic yoke  Made by low carbon iron
Encapsulation materialWith specially designed, PA66 30% fiberglass  thermoplastic material
Electrical Connections
DIN43650B Spade plug

Dimensions
