Solenoid Connector

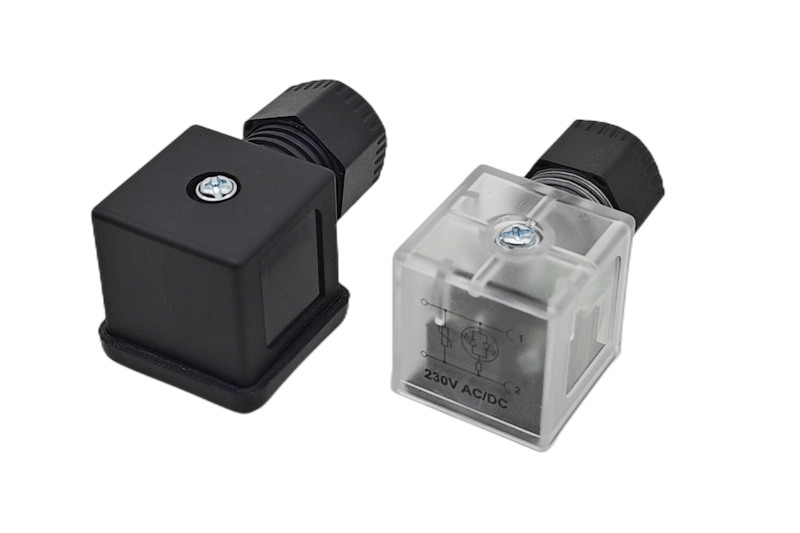

DIN Form A Valve Connector IP67
DIN Form A Valve Connector IP67
DIN Form A Valve Connector IP67
DIN Form A Valve Connector IP67

DIN Form A Valve Connector IP67

EN175301-803/DIN43650, Type A, Contact Spacing 18mm, Cable entry PG9/PG11, IP67
Affordable Price, Free Samples for Performance Verify.
Features
  • Robust design, long service life
  • Protection class IP67, outstanding performance
  • Multiple Connector circuits for optional, LED; TVS,VDR; Rectifier.
  • Connector shell color available with: Black, Transparent, others on request.

Product details

Inspecting

Reviews

Application
The connectors with cabe entry conform to industry standard EN 175301-803 (Formerly DIN43650 ) are normally used to supply power to Solenoid valves

Technical Data
FormDIN 43650A
Mechanical life  ≥50 Insertion cycle
Protection class IP67(mated) IEC 60529
Working Voltage AC 250V max.-DC 300V max.(IEC 664)
Nominal current  2A; 10A (40℃) Suitable cableφ cable 4-8mm
Contact resistance  ≤5mΩ Max.conductor section  3*1.5mm²
General Construction
Gasket material NBR
Shell material PA / PC
Shell color Black & Transparent
Connection
Cable entry PG 9 - PG 11
Fixing screw M3*28
Contacts spacing18mm
PIN form 2+1GND; 3+1GND
Dimensions
